Number：00100
Name：SKIVE FERRULE FOR SAE 100R1A/EN 853 1ST HOSE

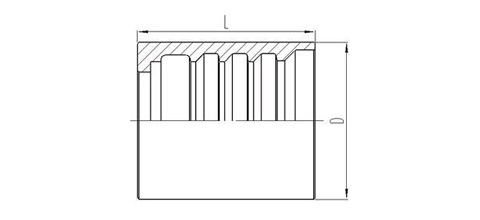

SKIVE FERRULE FOR SAE 100R1A/EN 853 1ST HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00100-03 | 5 | 3 | 17.5 | 27 |
00100-04 | 6 | 4 | 20.6 | 30 |
00100-05 | 8 | 5 | 21.5 | 31 |
00100-06 | 10 | 6 | 24 | 32 |
00100-08 | 12 | 8 | 28.5 | 34 |
00100-10 | 16 | 10 | 32 | 37 |
00100-12 | 20 | 12 | 26 | 43 |
00100-16 | 25 | 16 | 43 | 50 |
00100-20 | 32 | 20 | 50.5 | 59 |
00100-24 | 38 | 24 | 57 | 74 |
00100-32 | 51 | 32 | 70.6 | 78 |
