Number：00210
Name：NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：00210
Name：NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE

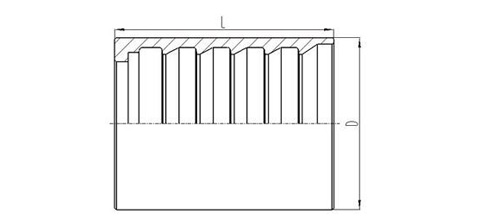

NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00210-03 | 5 | 3 | 20.6 | 27 |
00210-04 | 6 | 4 | 22.2 | 30 |
00210-05 | 8 | 5 | 23 | 31 |
00210-06 | 10 | 6 | 25 | 32 |
00210-08 | 12 | 8 | 28.3 | 34 |
00210-10 | 16 | 10 | 31.5 | 37 |
00210-12 | 20 | 12 | 35.5 | 43 |
00210-16 | 25 | 16 | 45 | 50 |
00210-20 | 32 | 20 | 55 | 59 |
00210-24 | 38 | 24 | 62.5 | 74 |
00210-32 | 51 | 32 | 75.5 | 78 |
