Number：00200
Name：SKIVE FERRULE FOR SAE 100R2A/EN 853 2ST HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：00200
Name：SKIVE FERRULE FOR SAE 100R2A/EN 853 2ST HOSE

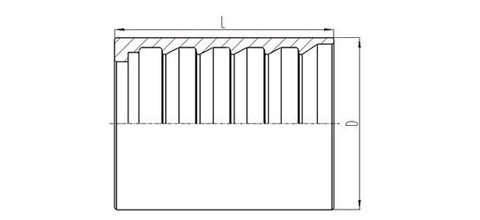

SKIVE FERRULE FOR SAE 100R2A/EN 853 2ST HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00200-03 | 4 | 3 | 20.6 | 27 |
00200-04 | 6 | 4 | 21 | 30 |
00200-05 | 8 | 5 | 24 | 31 |
00200-06 | 10 | 6 | 25.5 | 32 |
00200-08 | 12 | 8 | 30 | 34 |
00200-10 | 16 | 10 | 33.4 | 37 |
00200-12 | 20 | 12 | 38 | 43 |
00200-16 | 25 | 16 | 46 | 50 |
00200-20 | 32 | 20 | 56 | 59 |
00200-24 | 38 | 24 | 62 | 74 |
00200-32 | 51 | 32 | 75 | 78 |
