Number：00110
Name：NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：00110
Name：NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE

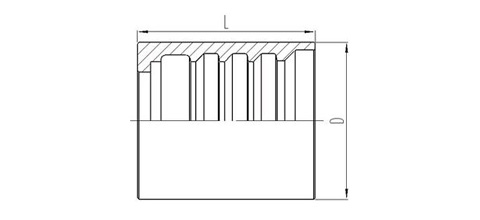

HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00110-03 | 5 | 3 | 17.5 | 27 |
00110-04 | 6 | 4 | 20.6 | 30 |
00110-05 | 8 | 5 | 20.8 | 31 |
00110-06 | 10 | 6 | 23.3 | 32 |
00110-08 | 12 | 8 | 27 | 34 |
00110-10 | 16 | 10 | 30 | 37 |
00110-12 | 20 | 12 | 34 | 43 |
00110-16 | 25 | 16 | 42.6 | 50 |
00110-20 | 32 | 20 | 52 | 59 |
00110-24 | 38 | 24 | 58 | 74 |
00110-32 | 51 | 32 | 72 | 78 |
