Number：01400
Name：SKIVE FERRULE FOR R12/20-24 HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：01400
Name：SKIVE FERRULE FOR R12/20-24 HOSE

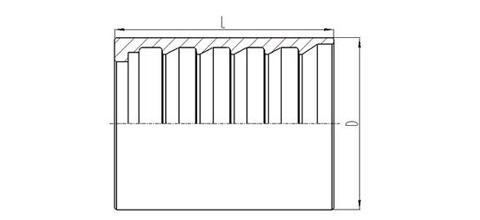

SKIVE FERRULE FOR R12/20-24 HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
01400-04 | 6 | 4 | 22 | 37.5 |
01400-06 | 10 | 6 | 27.5 | 39 |
01400-08 | 12 | 8 | 31.5 | 41 |
01400-10 | 16 | 10 | 34 | 43 |
01400-12 | 20 | 12 | 39 | 51 |
01400-14 | 22 | 14 | 43.5 | 54 |
01400-16 | 25 | 16 | 46.5 | 61.5 |
01400-20 | 32 | 20 | 55.5 | 67.5 |
01400-24 | 38 | 24 | 63.5 | 75 |
01400-32 | 51 | 32 | 78 | 79 |
