Number：22641
Name：45° BSP Female 60°Cone
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：22641
Name：45° BSP Female 60°Cone

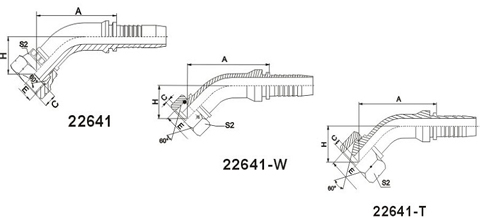

45° BSP Female 60°Cone
HOSE BORE | DIMENSIONS | ||||||
PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
22641-04-04 | G1/4"X19 | 6 | 4 | 42.3 | 5.5 | 20.2 | 19 |
22641-06-04 | G3/8"X19 | 6 | 4 | 43.2 | 6.3 | 21 | 22 |
22641-06-05 | G3/8"X19 | 8 | 5 | 45.3 | 6.3 | 22 | 22 |
22641-06-06 | G3/8"X19 | 10 | 6 | 46.9 | 6.3 | 22.6 | 22 |
22641-08-08 | G1/2"X14 | 12 | 8 | 61.1 | 7.5 | 26.1 | 27 |
22641-10-08 | G5/8"X14 | 12 | 8 | 61.4 | 9.5 | 26.5 | 30 |
22641-10-10 | G5/8"X14 | 16 | 10 | 72.6 | 9.5 | 27.8 | 30 |
22641-12-10 | G3/4"X14 | 16 | 10 | 73 | 10.9 | 28.2 | 32 |
22641-12-12 | G3/4"X14 | 20 | 12 | 79.2 | 10.9 | 31.8 | 32 |
22641-16-16 | G1"X11 | 25 | 16 | 88.4 | 11.7 | 34.2 | 41 |
22641-08-06T | G1/2"X14 | 10 | 6 | 48.1 | 7.5 | 23.9 | 27 |
22641-12-08T | G3/4"X14 | 12 | 8 | 61.8 | 10.9 | 26.9 | 32 |
22641-16-12T | G1"X11 | 20 | 12 | 80.8 | 11.7 | 33.4 | 41 |
22641-20-16T | G1.1/4"X11 | 25 | 16 | 85.3 | 11 | 31.1 | 50 |
22641-20-20W | G1.1/4"X11 | 32 | 20 | 98.8 | 11 | 38 | 50 |
22641-24-24W | G1.1/2"X11 | 40 | 24 | 116.8 | 13 | 45.5 | 55 |
22641-32-32W | G2"X11 | 50 | 32 | 135.7 | 16 | 52.7 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22642-xx-xx | |||||||
