Number：22611D-SM
Name：BSP Female 60°Cone Double Hexagon
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：22611D-SM
Name：BSP Female 60°Cone Double Hexagon

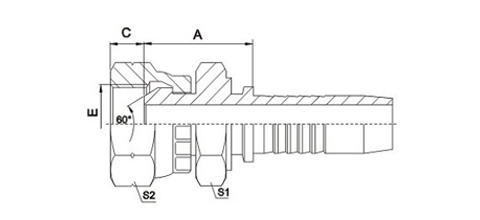

BSP Female 60°Cone Double Hexagon
HOSE BORE | DIMENSIONS | ||||||
PART NO. | THREAD E | DN | DASH | A | C | S1 | S2 |
22611D-04-04SM | G1/4"X19 | 6 | 4 | 23 | 5.5 | 14 | 19 |
22611D-06-06SM | G3/8"X19 | 10 | 6 | 25 | 6.3 | 17 | 22 |
22611D-08-08SM | G1/2"X14 | 12 | 8 | 28.5 | 7.5 | 22 | 27 |
22611D-10-08SM | G5/8"X14 | 12 | 8 | 30 | 9.5 | 22 | 30 |
22611D-12-08SM | G3/4"X14 | 12 | 8 | 32.1 | 10.9 | 27 | 32 |
22611D-12-12SM | G3/4"X14 | 20 | 12 | 32.5 | 10.9 | 27 | 32 |
22611D-16-16SM | G1"X11 | 25 | 16 | 36.3 | 11.7 | 32 | 41 |
22611D-20-20SM | G1.1/4"X11 | 32 | 20 | 41.5 | 11 | 41 | 50 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22612D-xx-xxSM | |||||||
