Name：90° SAE Female 3000PSI ISO 12151-3--- SAE J516
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：87391
Name：90° SAE Female 3000PSI ISO 12151-3--- SAE J516

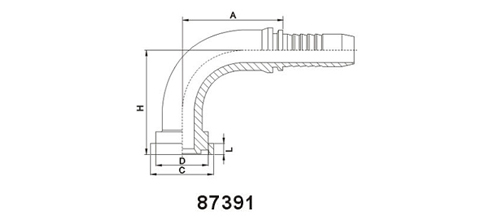

90° SAE Female 3000PSI ISO 12151-3--- SAE J516
HOSE BORE | DIMENSIONS | |||||||
PART NO. | THREAD E | DN | DASH | A | C | D | H | L |
87391-08-08 | 1/2" | 12 | 8 | 41 | 30.2 | 24 | 47 | 6.73 |
87391-12-08 | 3/4" | 12 | 8 | 41 | 38.1 | 31.7 | 48 | 6.73 |
87391-12-10 | 3/4" | 16 | 10 | 56.5 | 37.1 | 31.7 | 52.5 | 6.73 |
87391-12-12 | 3/4" | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
87391-12-12(H100) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 100 | 6.73 |
87391-12-12(H127) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 127 | 6.73 |
87391-12-12(H150) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 150 | 6.73 |
87391-12-16 | 3/4" | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 |
87391-16-12 | 1" | 20 | 12 | 66.2 | 44.4 | 38 | 62 | 8 |
87391-16-16 | 1" | 25 | 16 | 78 | 44.4 | 38 | 67.5 | 8 |
87391-16-16(H100) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 100 | 8 |
87391-16-16(H127) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 127 | 8 |
87391-16-16(H150) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 150 | 8 |
87391-16-20 | 1" | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 |
87391-20-16 | 1.1/4" | 25 | 16 | 78 | 50.8 | 43 | 67.5 | 8 |
87391-20-20 | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 |
87391-20-20(H100) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 100 | 8 |
87391-20-20(H127) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 127 | 8 |
87391-20-20(H150) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 150 | 8 |
87391-20-24 | 1.1/4" | 40 | 24 | 108.5 | 50.8 | 43 | 78.5 | 8 |
87391-24-20 | 1.1/2" | 32 | 20 | 91.5 | 60.3 | 50 | 80.5 | 8 |
87391-24-24 | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 |
87391-24-24(H127) | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 127 | 8 |
87391-32-24 | 2" | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 |
87391-32-32 | 2" | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 |
87391-40-32 | 2.1/2" | 50 | 32 | 131.8 | 84.1 | 74.7 | 114.3 | 9.53 |
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87392-XX-XX. | ||||||||
