Number：22611
Name：BSP Female 60°Cone
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：22611
Name：BSP Female 60°Cone

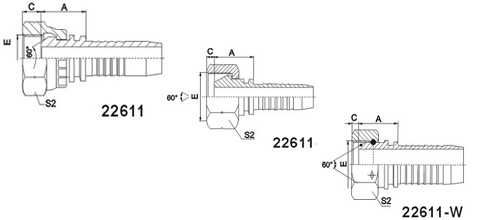

BSP Female 60°Cone
HOSE BORE | DIMENSIONS | |||||
PART NO. | THREAD E | DN | DASH | A | C | S2 |
22611-02-03 | G1/8"X28 | 5 | 3 | 15 | 5.5 | 14 |
22611-02-04 | G1/8"X28 | 6 | 4 | 15 | 5.5 | 14 |
22611-04-03 | G1/4"X19 | 5 | 3 | 17 | 5.5 | 19 |
22611-04-04 | G1/4"X19 | 6 | 4 | 18 | 5.5 | 19 |
22611-04-05 | G1/4"X19 | 8 | 5 | 18 | 5.5 | 19 |
22611-04-06 | G1/4"X19 | 10 | 6 | 18 | 5.5 | 19 |
22611-06-04 | G3/8"X19 | 6 | 4 | 19 | 6.3 | 22 |
22611-06-05 | G3/8"X19 | 8 | 5 | 19 | 6.3 | 22 |
22611-06-06 | G3/8"X19 | 10 | 6 | 19.5 | 6.3 | 22 |
22611-06-08 | G3/8"X19 | 12 | 8 | 19.5 | 63 | 22 |
22611-08-08 | G1/2"X14 | 12 | 8 | 21.5 | 7.5 | 27 |
22611-10-08 | G5/8"X14 | 12 | 8 | 22 | 9.5 | 30 |
22611-10-10 | G5/8"X14 | 16 | 10 | 23.5 | 9.5 | 30 |
22611-12-10 | G3/4"X14 | 16 | 10 | 24 | 10.9 | 32 |
22611-12-12 | G3/4"X14 | 20 | 12 | 24 | 10.9 | 32 |
22611-16-14 | G1"X11 | 22 | 14 | 26 | 11.7 | 41 |
22611-16-16 | G1"X11 | 25 | 16 | 27 | 11.7 | 41 |
22611-08-06T | G1/2"X14 | 10 | 6 | 21 | 7.5 | 27 |
22611-12-08T | G3/4"X14 | 12 | 8 | 22 | 10.9 | 32 |
22611-16-12T | G1"X11 | 20 | 12 | 24 | 11.7 | 41 |
22611-20-16T | G1.1/4"X11 | 25 | 16 | 27.5 | 11 | 50 |
22611-24-20T | G1.1/4"X11 | 32 | 20 | 32 | 13 | 55 |
22611-32-24T | G2"X11 | 40 | 24 | 30 | 16 | 70 |
22611-20-20W | G1.1/4"X11 | 32 | 20 | 30.5 | 11 | 50 |
22611-24-24W | G1.1/2"X11 | 40 | 24 | 32 | 13 | 55 |
22611-32-32W | G2"X11 | 50 | 32 | 31.9 | 16 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22612-xx-xx | ||||||
