Number：12211
Name：BSP Male O-Ring Seal
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：12211
Name：BSP Male O-Ring Seal

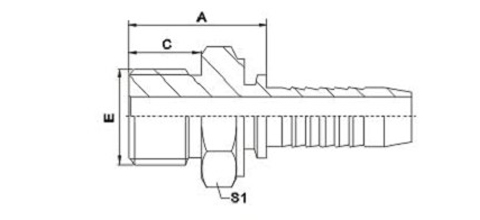

BSP Male O-Ring Seal
HOSE BORE | DIMENSIONS | ||||||
PART NO. | THREAD E | DN | DASH | O RING | A | C | S1 |
12211-04-04 | G1/4"X19 | 6 | 4 | O111 | 23.5 | 11 | 19 |
12211-04-06 | G1/4"X19 | 10 | 6 | O111 | 23.5 | 11 | 19 |
12211-06-06 | G3/8"X19 | 10 | 6 | O113 | 26.5 | 12 | 22 |
12211-08-04 | G1/2"X14 | 6 | 4 | O115 | 33.5 | 14 | 27 |
12211-08-06 | G1/2"X14 | 10 | 6 | O115 | 33.5 | 14 | 27 |
12211-08-08 | G1/2"X14 | 12 | 8 | O115 | 34 | 14 | 27 |
12211-10-10 | G5/8"X14 | 16 | 10 | O910 | 36 | 15.5 | 30 |
12211-12-10 | G3/4"X14 | 16 | 10 | O119 | 33.5 | 15.5 | 32 |
12211-12-12 | G3/4"X14 | 20 | 12 | O119 | 38 | 15.5 | 32 |
12211-12-16 | G3/4"X14 | 25 | 16 | O119 | 36 | 15.5 | 32 |
12211-16-16 | G1"X11 | 25 | 16 | O217 | 44.5 | 18.5 | 41 |
12211-20-20 | G1.1/4"X11 | 32 | 20 | O222 | 46 | 20 | 50 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12212-xx-xx； | |||||||
