Number：01300
Name：SKIVE FERRULE FOR CHINA 3-WIRE HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：01300
Name：SKIVE FERRULE FOR CHINA 3-WIRE HOSE

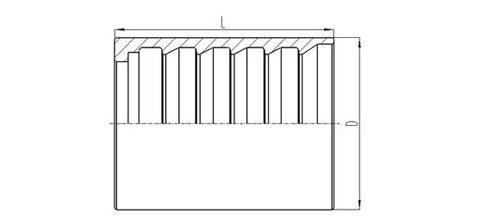

SKIVE FERRULE FOR CHINA 3-WIRE HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
01300-04 | 6 | 4 | 23 | 30 |
01300-05 | 8 | 5 | 25 | 32 |
01300-06 | 10 | 6 | 27 | 32 |
01300-08 | 12 | 8 | 33 | 34 |
01300-10 | 16 | 10 | 36 | 39 |
01300-12 | 20 | 12 | 39 | 43 |
01300-14 | 22 | 14 | 42 | 43 |
01300-16 | 25 | 16 | 45 | 50 |
01300-20 | 32 | 20 | 53 | 59 |
01300-24 | 38 | 24 | 59 | 74 |
01300-32 | 51 | 32 | 72 | 78 |
