Number：00018
Name：NO-SKIVE FERRULE FOR SAE 100R7 HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：00018
Name：NO-SKIVE FERRULE FOR SAE 100R7 HOSE

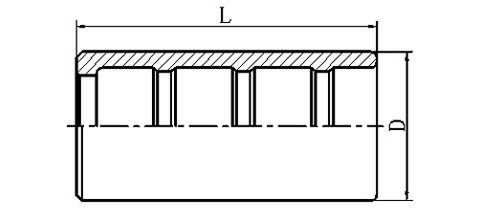

NO-SKIVE FERRULE FOR SAE 100R7 HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00018-03 | 4 | 3 | 14.2 | 27 |
00018-04 | 6 | 4 | 17 | 29 |
00018-05 | 8 | 5 | 18.8 | 31 |
00018-06 | 10 | 6 | 21 | 31 |
00018-08 | 12 | 8 | 25.5 | 34 |
00018-12 | 20 | 12 | 33 | 43 |
