Number：00402
Name：FERRULE FOR SAE 100 R9AT-R12,EN 856 4SP/04-16 HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：00402
Name：FERRULE FOR SAE 100 R9AT-R12,EN 856 4SP/04-16 HOSE

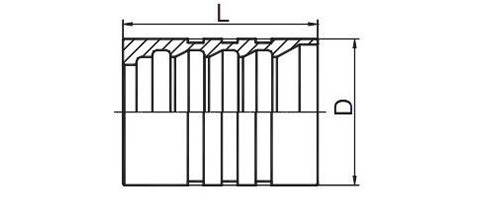

FERRULE FOR SAE 100 R9AT-R12,EN 856 4SP/04-16 HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00402-04 | 6 | 4 | 30 | |
00402-06 | 10 | 6 | 33 | |
00402-08 | 12 | 8 | 34 | |
00402-10 | 16 | 10 | 39 | |
00402-12 | 20 | 12 | 40 | |
00402-16 | 25 | 16 | 51 | |
00402-20 | 32 | 20 | 60 | |
00402-24 | 38 | 24 | 70 | |
00402-32 | 51 | 32 | 72 | |
